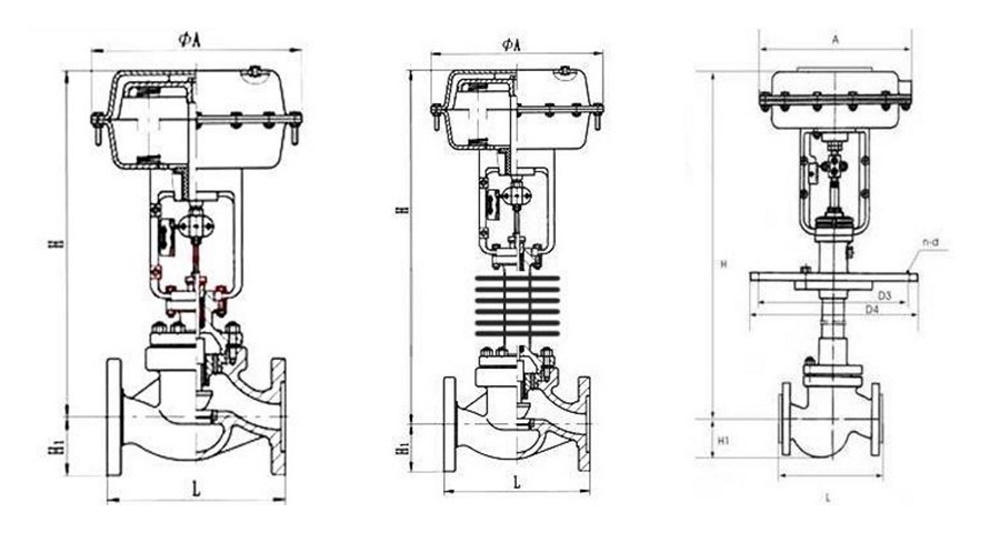

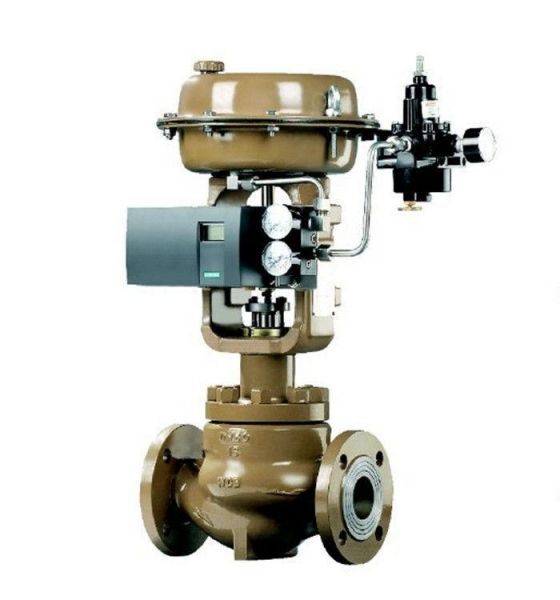

Single Seated Globe Valve
The balanced sleeve is of guided type structure. The movement is stable and accurate. It is a kind of valve which suitable for the fluid in the condition of high temperature and high pressure difference. We can make it into the lengthen type and heat radiating type. The standard executor is multi spring coil type and electronics type.
Performance & Specification
| Size | DN15~350 / ½"~14" |
|---|---|
| Pressure rating | PN1.6~26 / ANSI 150~1500Lb |
| Temperature range | -196~650℃ |
| Body material | WCB, CF8, CF8M, CF3M, Ti, C-276 |
| Leakage class | ANSI Ⅳ, Ⅴ or Ⅵ |
| Cv | 0.28~2300 |
| Application | General process |
| Features | Simple, steady and inexpensive. |
Executive Standards
Through ISO9001 quality management system certification. Establishing quality assurance system according to ISO Q1 specification. Obtain the national A1 special equipment manufacturing license.
Leakage Grade: ANSI VI, IEC60534, GB 9223, GB 4213, JB/T 5223
Main Application Fields

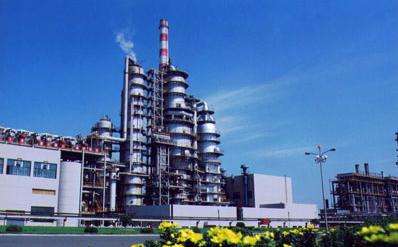

Petrochemical Plants

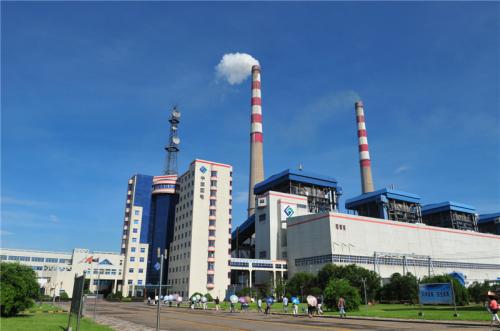

Power Generation Plants

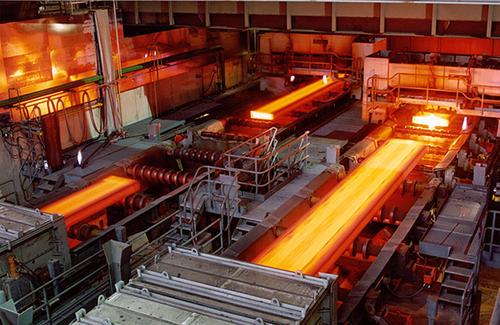

Steelworks, Mining; Chemical, Pharmaceutical

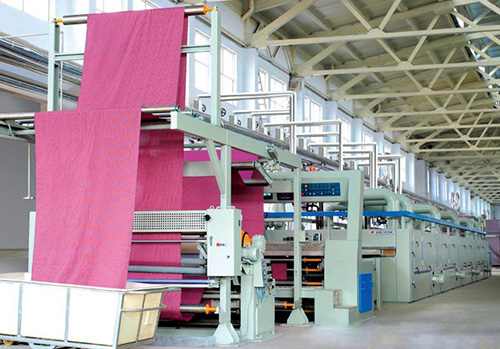

Paints, Hydrocarbons, Cellulose, Sugar Refining, Food and Beverage Production, etc.
Production Equipment & Quality Management

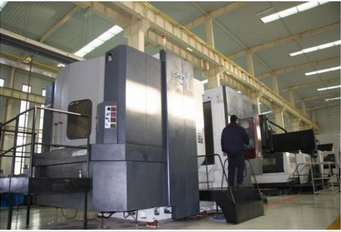

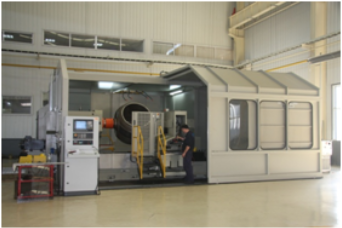

Horizontal Milling and Boring Machining Center

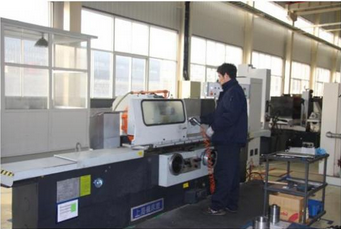

Outer Grinding Machine
Horizontal Processing Center

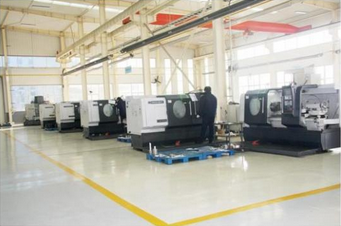

Horizontal NC Machining Equipment

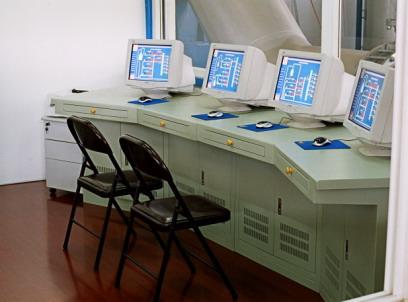

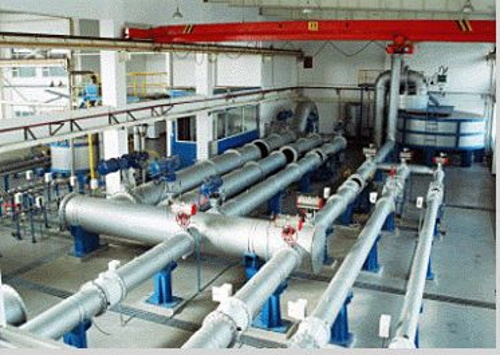

Control System of Flow Standard Device
Calibration Device
Application Achievement
