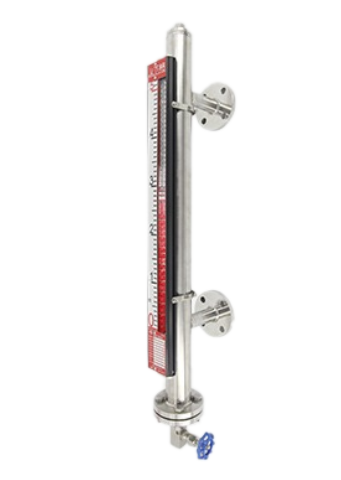

Magnetic Flap Level Gauge
Magnetic Flap is applicable for measuring corrosive media by adopting the new process with lining PTFE. It is developed as anti-corrosion type level gauge for liquid level measurement, it is an updated product compare to traditional type. It has long service life, no measurement blind area.
Performance & Specification
| Measurement range | 200-5000MM |
|---|---|
| Pressure rating | Working pressure: <= 2.5MpaG |
| Temperature range | -60~200℃ |
| Body material | SS304/316, Ti, C-276，PTFE LINING |
| Density of medium | >= 0.4g/cm2 |
| Application | General process |
| Features | Simple, steady and inexpensive. |
Note: we can provide customized equipment for level measurement as well.
Executive Standards
Through ISO9001 quality management system certification. Establishing quality assurance system according to ISO Q1 specification. Obtain the national A1 special equipment manufacturing license.
ASME B16.5, ASME B16.47, JJG971-2002, JJF1001-2011, JJF1002-2010, JJF1059.1-2012
Main Application Fields

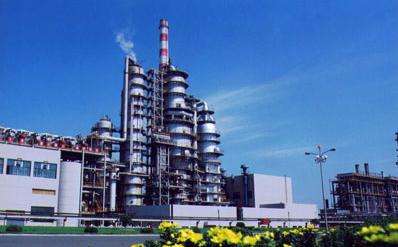

Petrochemical Plants

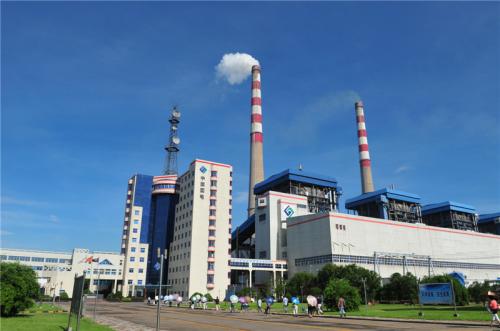

Power Generation Plants

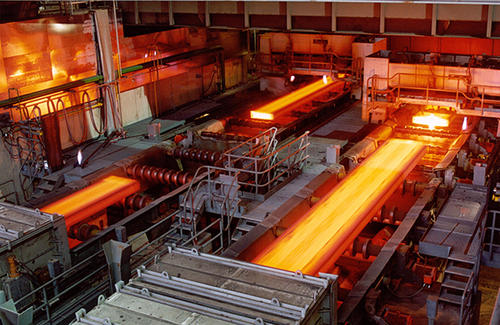

Steelworks, Mining; Chemical, Pharmaceutical

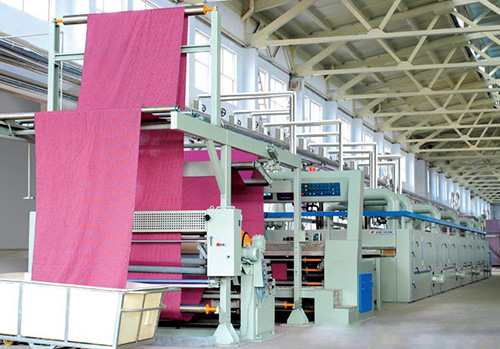

Paints, Hydrocarbons, Cellulose, Sugar Refining, Food and Beverage Production, etc.
Production Equipment & Quality Management

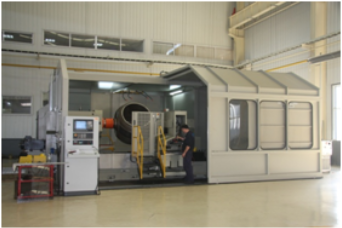

Boring Machining Center

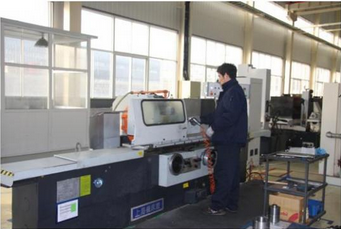

Outer Grinding Machine

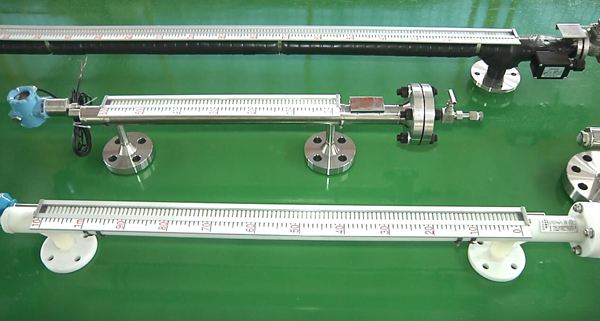

Level Gauge Waiting for Detection

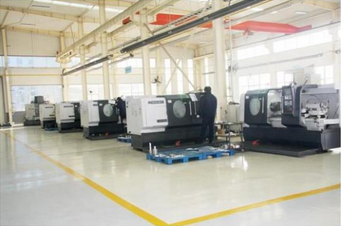

Horizontal Machining Equipment

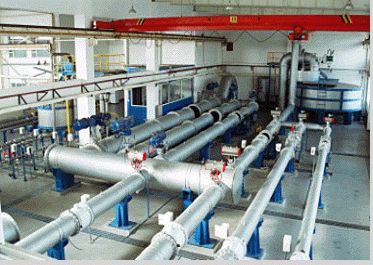

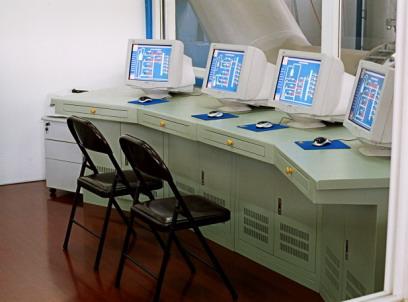

Control System of Standard Device
Calibration Device
Application Achievement
